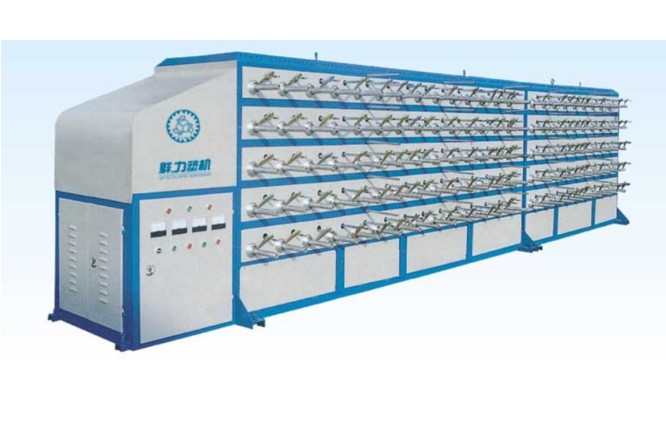

This machine , of 2.2/3 kw main motor only, is our latest and energy-saving invention. It adopts cardioid cam replacing the reciprocating screw in combination winder, reciprocating moving wholly adopts rolling friction resulting in less attrition of parts, stable movement and flat winding spindle! The overall length is greatly shortened because of double-side winding with 5 layers each, which is very suitable for matching with a large size tape drawing machine!
主要技术参数 Main Technical Parameters：
|
项目 Item 型号 Type |
锭子层数 Layer number of spindle |
锭子数 Number of spindle |
丝锭宽度 Width of tape spindle |
卷丝线速度 Linear speed of tape winding |
主电机功率 Power of main motor |
收卷电机功率 Power of winding motor |
安装尺寸 长*宽*高(mm) Installing dimension (L×W×H)(mm) |
重量 Weight(kg |
|
QL-STL-II/150 |
5 |
150 |
200 |
30-160 |
2.2 |
7 |
4700×1500×1700 |
2800 |
|
QL-STL-II/170 |
5 |
170 |
200 |
30-160 |
2.2 |
8 |
5200×1500×1700 |
3000 |
|
QL-STL-II/190 |
5 |
190 |
200 |
30-160 |
2.2 |
9 |
5700×1500×1700 |
3400 |
|
QL-STL-II/240 |
5 |
240 |
200 |
30-160 |
3 |
11 |
7000×1500×1700 |
4200 |
|
QL-STL-II/300 |
5 |
300 |
200 |
30-160 |
3 |
14 |
8500×1500×1700 |
5300 |
|
QL-STL-II/380 |
5 |
380 |
200 |
30-160 |
3 |
17 |
10500×1500×1700 |
6600 |
|
QL-STL-II/420 |
5 |
420 |
200 |
30-160 |
3 |
19 |
11500×1500×1700 |
7300 |
|
QL-STL-II/480 |
5 |
480 |
200 |
30-160 |
3 |
22 |
13000×1500×1700 |
8100 |
|
QL-STL-II/520II |
5 |
520 |
200 |
30-160 |
3×2 |
24 |
7000×4500×1700 |
8600 |
|
QL-STL-II/600II |
5 |
600 |
200 |
30-160 |
3×2 |
27 |
8000×4500×1700 |
9000 |
