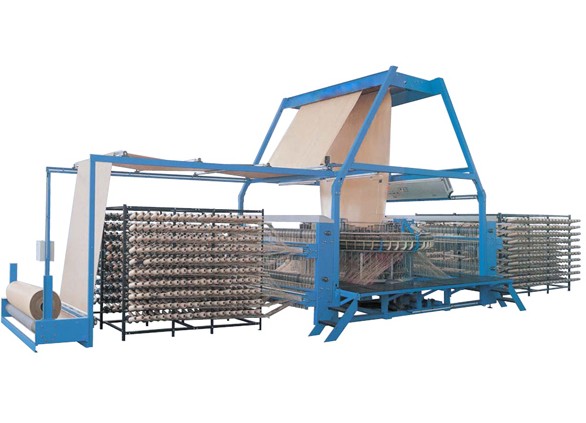

This machine is mainly used for producing flexographic container bags, colorized
cloth and awning cloth for rainproof etc and its characteristics are that it adopts
the rocker structure of small cam with double curves and it is equipped with the
advanced off-warp, off-weft, run-out weft as well as the automatic halt control
system of the run-out weft. Meanwhile , according to the demands of the
customer, it also can be equipped with frequency conversion speed regulation
system, which has simple operation and high production efficiency.
|
项目 Item 型号 Type |
梭子数（把） number of spindle |
编织折径（mm）10-24条丝/100mm Lay-flat width(mm) (10-24warps/100mm) |
最多折丝数（条） Max.warp（pcs） |
主机转速（r/min） Rotaional speed of main body(r/min) |
主电机功率（kw） Power of main Motor(kw) |
用电总功率（kw） Total power |
产量（m/h） 40条丝/100mm （40warps/100mm） |
安装尺寸(mm) Installing dimensions (L×W×H)(mm) |
重量 Weight(kg) |
|
QL-YZJ-8/2100G |
8 |
1400-2100 |
2016 |
40-70 |
5.5/7.5 |
10 |
60-90 |
17370×3535×*4000 |
5500 |
